hollow fiber inside / outside ：0.9mm/1.6mm (1bore) , 0.9mm/ 4.2mm ( 7bore)

membrane active area：4㎡

working status:

pre filter: 50-150um

Max.input water turbidity≤15NTU

design water flow: 60-160L/ ㎡ ／H

working: cross fitler or end dead filter

max. water pressure input: 0.45mpa

20℃ membrane pressure gap:28-150KPA

Max. membrane water pressure: 0.2MPa

ph. :2-12

working temperature: 5～45℃

resident the constantly chlorine residue concentration:100PPM

resident the un-constantly chlorine residue concentration: 200PPM

back washing / forward washing

water pressure: 0.25mpa

back wash water flow: 220-300L/M/H

back wash frequency: every 20-60 mins one time

back washing time: 30-60seconds

chemcial washing frequency: suggest every time using auto-feed medicine

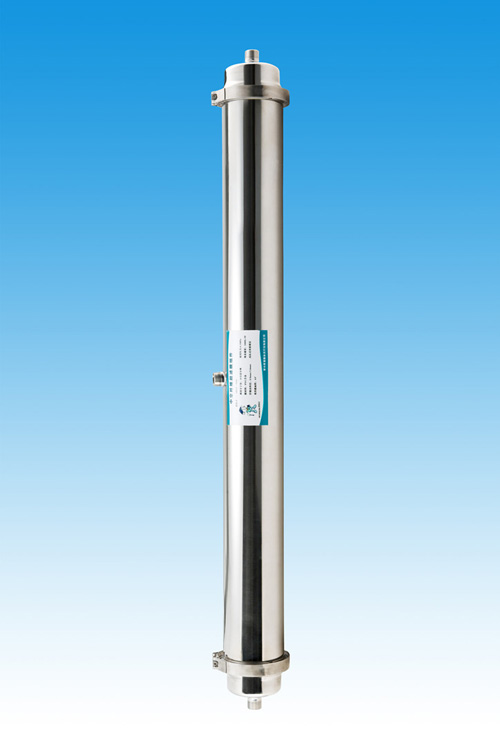

SR-4040 module compose by the stainless steel housing and the changable hollow fiber UF membrane. it can do forward flush and back washing and the chemcial washing

 when operation, it should Avoid sudden large changes on pressure, it should with slow up or down on pressure

1 center pipe structure design make the  water distribution is more even and better back washing effect.

2. both each side output water, makes it good back wash performance

3. Quick joining piping joint design,easy and fast installation, high leakproofness

4.Stainless steel band structure, deformation, no leaking

5. Membrane material is pollution resistance, high strength, hydrophilic modified PVC.

6.stable water flow, high anti-pollutaion, high  mechanical strength

7. can adopt 200ppm residual chlorine in short time, suitable PH 2-13

8 absolutely removing bacteria, output water flow turbidity ＜0.1NTU

9.Cross flow design, eliminate the dirty and block and improve the life

10. DI15<1  (testing raw water turbidity ＜20NTU)
